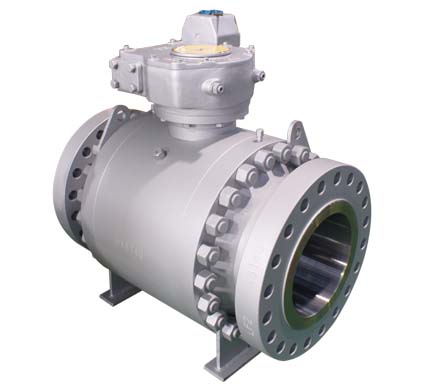

Trunnion Mounted Ball Valve
SPECIFICATIONS
| Design Standard | : | API 6D / API 608 |
| Size Range | : | 2” – 60” |
| Flow Bore | : | Full Bore / Reduce Bore |
| Body Style | : | 2-piece / 3 piece / Bolted Type / Welded Type |
| Pressure Rating | : | Class 150 – 2500 |
| Working Temperature | : | -196˚C ~ +650˚C -320˚F ~ +1200˚F |
| End Connection | : | ASME B16.5 - Flange ASME B16.25 – Butt-Weld ASME B16.47 |
| Face-to-Face | : | ASME B16.10 |
| Fire Safe | : | API 607 |
| Test & Inspection | : | API 598 / API 6D |
