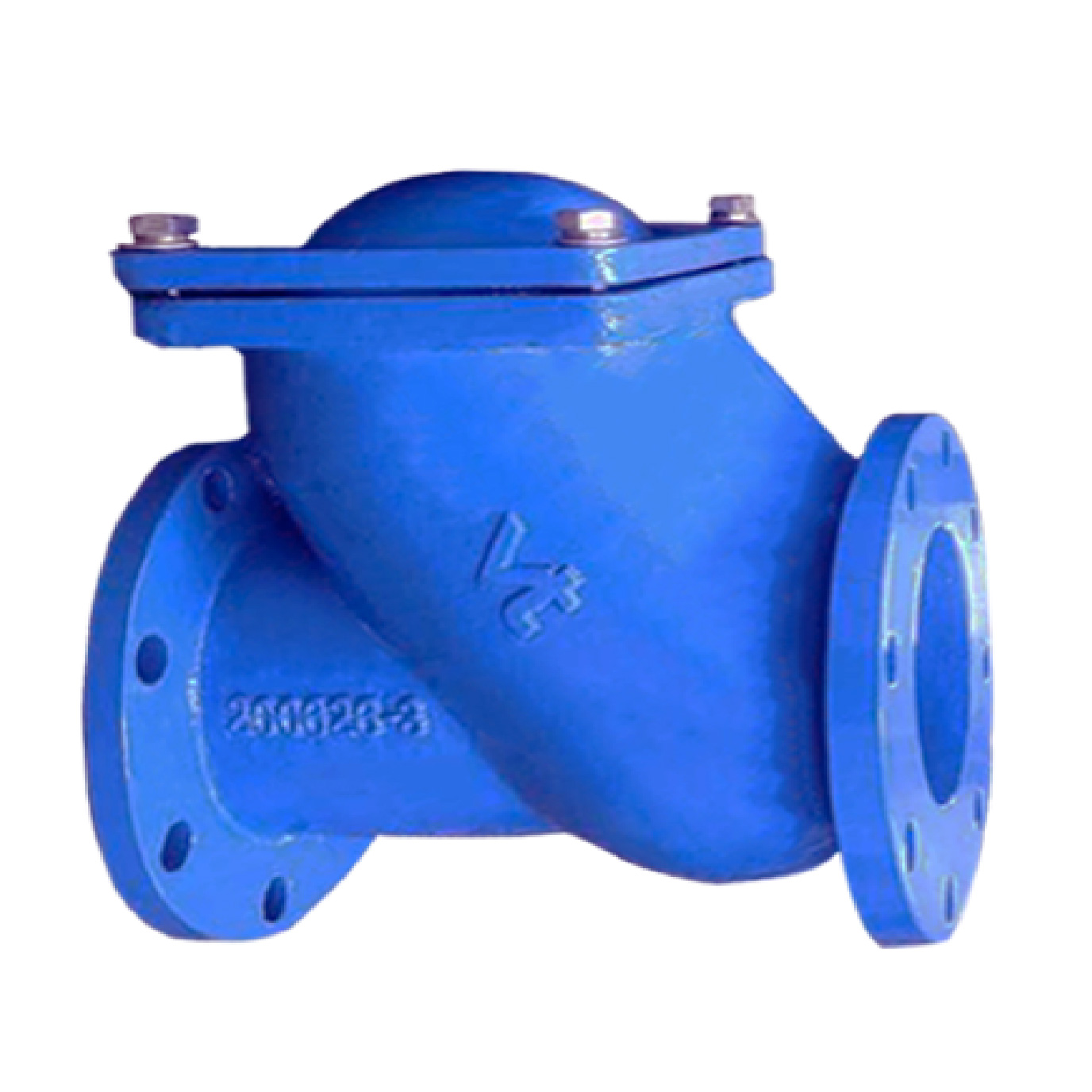

Ball Check Valve
SPECIFICATIONS
| Size Range | : | 2" - 24" |
| Pressure Rating | : | 250 psi |
| Working Temperature | : | -10˚C ~ +80˚C -50˚F ~ +176˚F |
| End Connection | : | ANSI B16.1 / ANSI B16.5 |
| Face-to-Face | : | AWWA C508 |
| Test & Inspection | : | AWWA C508 / API 598 |
| Materials | ||
| Body | : | Ductile Iron |
| Ball | : | Ductile Iron + NBR Encapsulated |
Features
The ball moves fully out of the flow path to reduce head loss.
High strength ductile iron body used for lowering the weight and improving long term durability.
All iron parts are coated inside & outside with fusion bonded epoxy for corrosion resistance per AWWA C550.
Valves can be installed in the horizontal or vertical position.
Top cover provides access to the inside of the valve without removal from the pipe line.
A wash out plug can be added upon request to allow for cleaning and maintenance operation.
