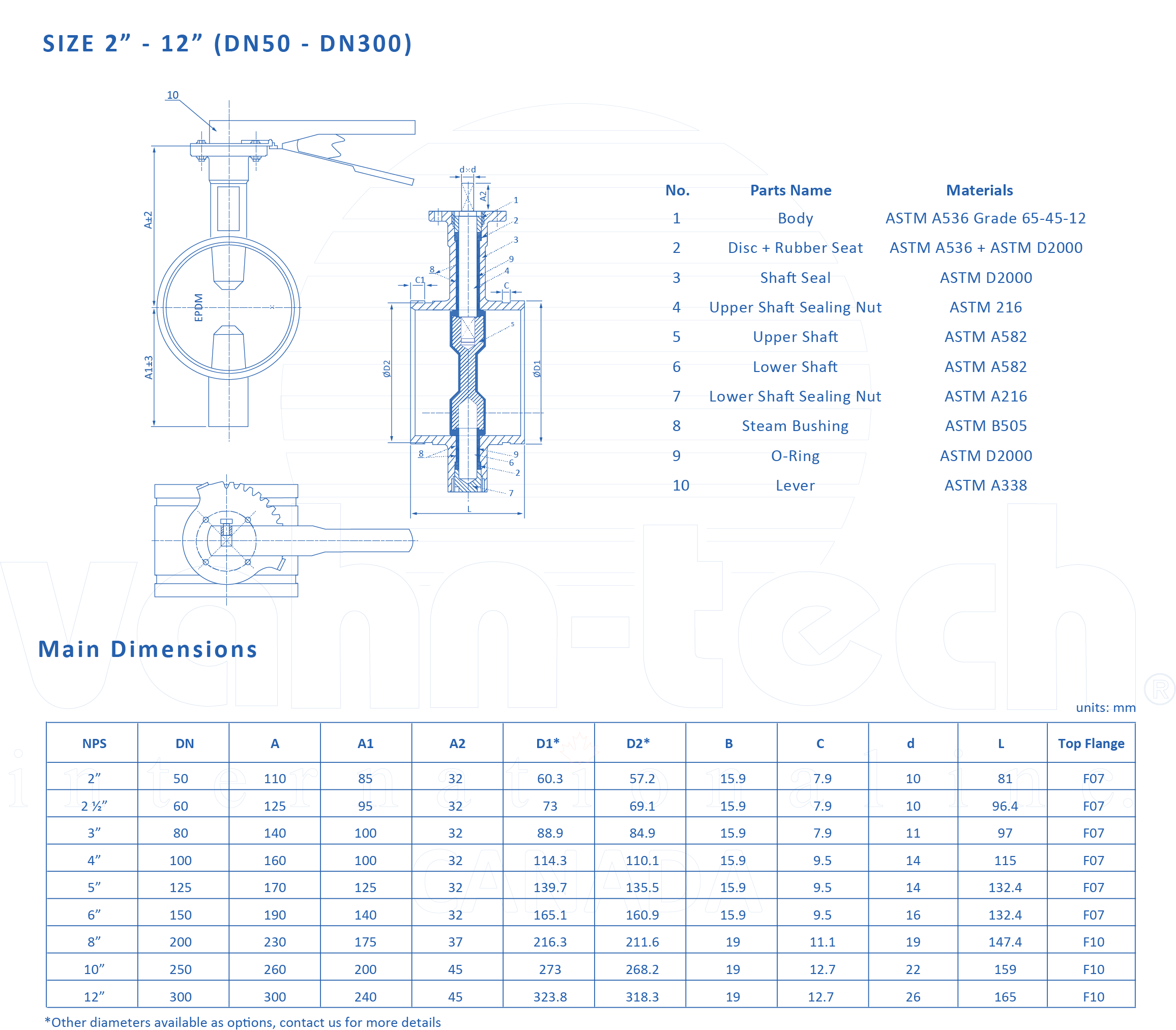

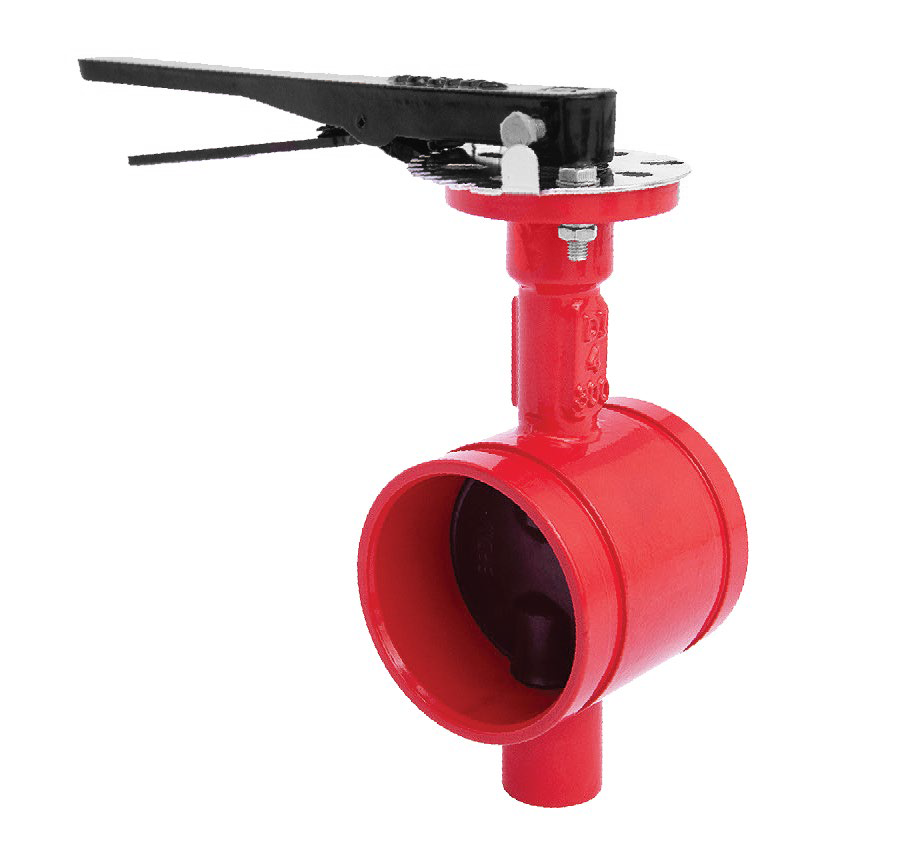

Groove End Butterfly Valve
SPECIFICATIONS
| Design Standard | : | AWWA C606 |
| Size Range | : | 2" - 12" |
| Pressure Rating | : | 300 psi |
| Working Temperature | : | -10˚C ~ +80˚C (14˚F ~ +112˚F) |
| End Connection | : | AWWA C606 |
| Materials | ||
| Body | : | Ductile Iron |
| Disc | : | Ductile Iron |
| Seat | : | EPDM |
Features
Grooved connection compliant with AWWA C606 standard.
Connection compatible with Victaulic Joints.
High Strength ductile iron body used for lowering the weight and improving long term durability.
All iron parts are coated inside and outside with fusion bonded epoxy for corrosion resistance as per AWWA
C550.
NSF61 approved material available as option.
