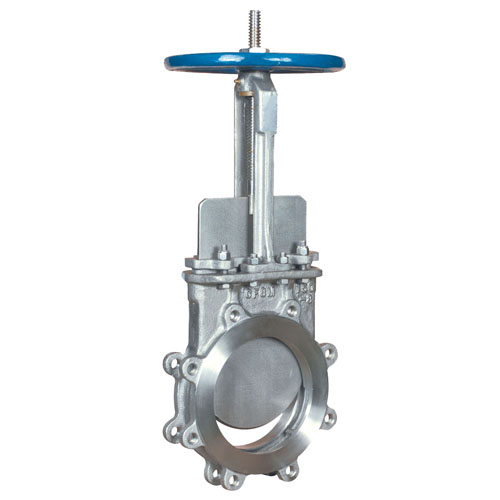

High Performance Knife Gate Valve
SPECIFICATIONS
| Design Standard | : | MSS SP 81 |
| Size Range | : | 2" - 48" |
| Pressure Rating | : | 100 / 150 psi |
| Working Temperature | : | -20˚C ~ +120˚C -4˚F ~ +248˚F |
| End Connection | : | ANSI Class 150 (Wafer / Lug Type) |
| Test & Inspection | : | MSS SP 81 / AWWA C520 |
| Materials | ||
| Body | : | WCB / CF8 / CF8M |
| Gate | : | SS410 / SS304 / SS316 + HCr |
| Seat | : | Metal / PTFE / EPDM / Rubber / Viton |
