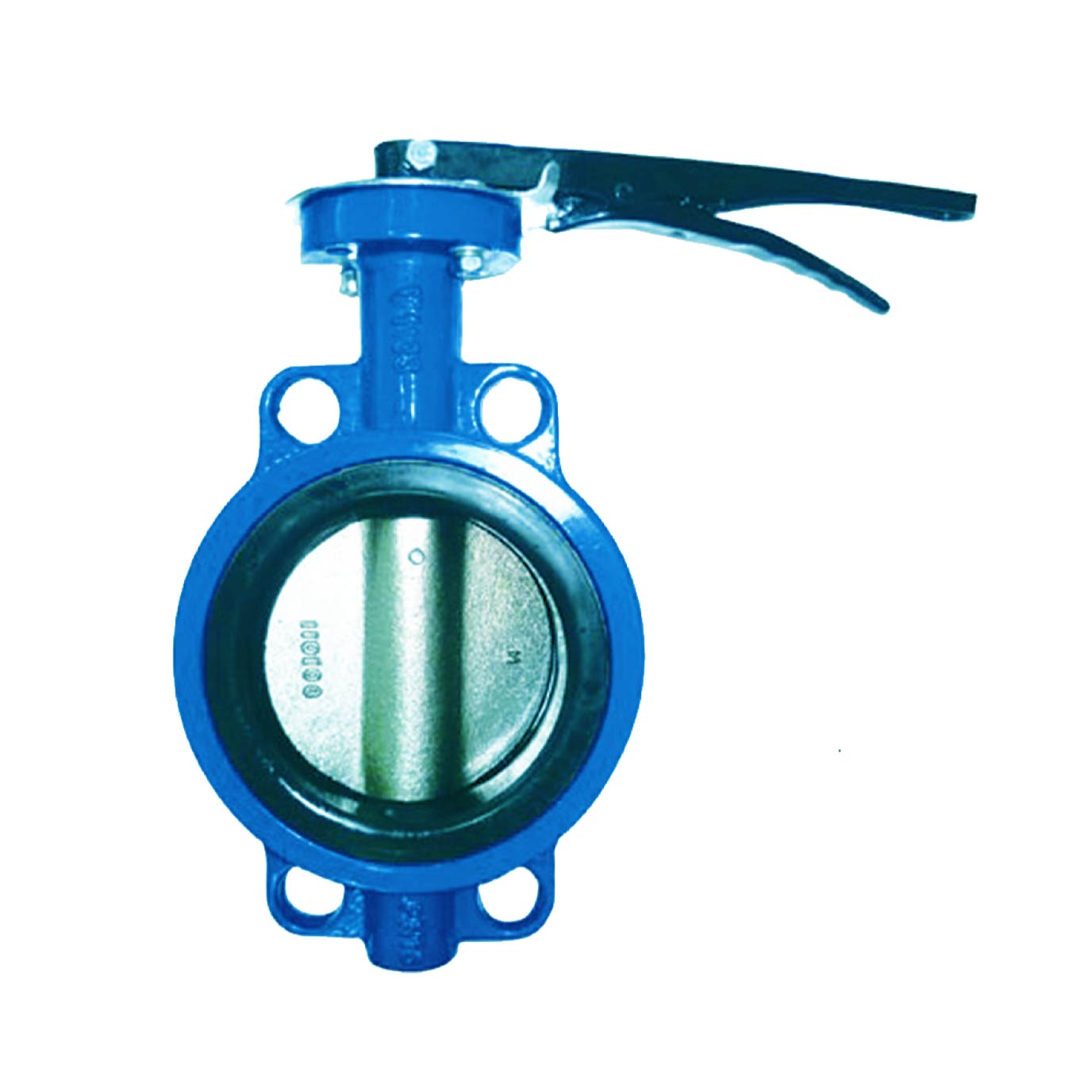

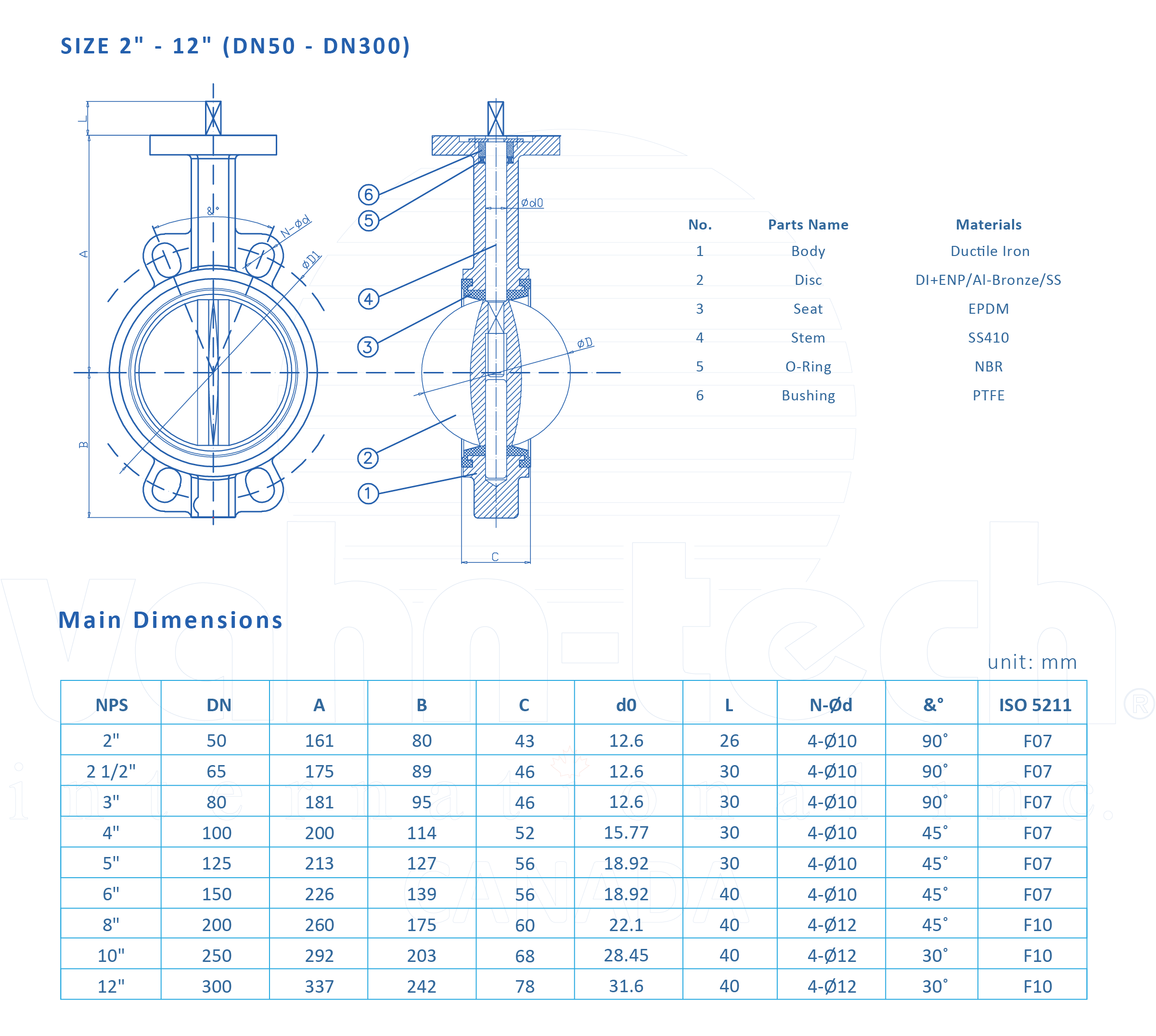

Wafer Type Butterfly Valve

SPECIFICATIONS

Design Standard : API 609 / BS 5155 / EN 593
Size Range : 1-1/2" - 72"
Pressure Rating : Class 150 / PN10 / PN16
Working Temperature : -10˚C ~ +130˚C
14˚F ~ +266˚F (depends on seat materials)
End Connection : ANSI B16.1 / ANSI B16.5 / ASME B16.47 / DIN 2501 / BS 4505
Face-to-Face : API 609 / DIN 3202 / EN 558-1 / ISO 5752
Test & Inspection : API 598
Materials
Body : Ductile Iron / WCB / Stainless Steel
Disc : Ductile Iron / Al-Bronze / Stainless Steel / Nylon / PTFE
Seat : EPDM / NBR / Viton
Document Type Download
VT-Wafer Type.pdf pdf English
