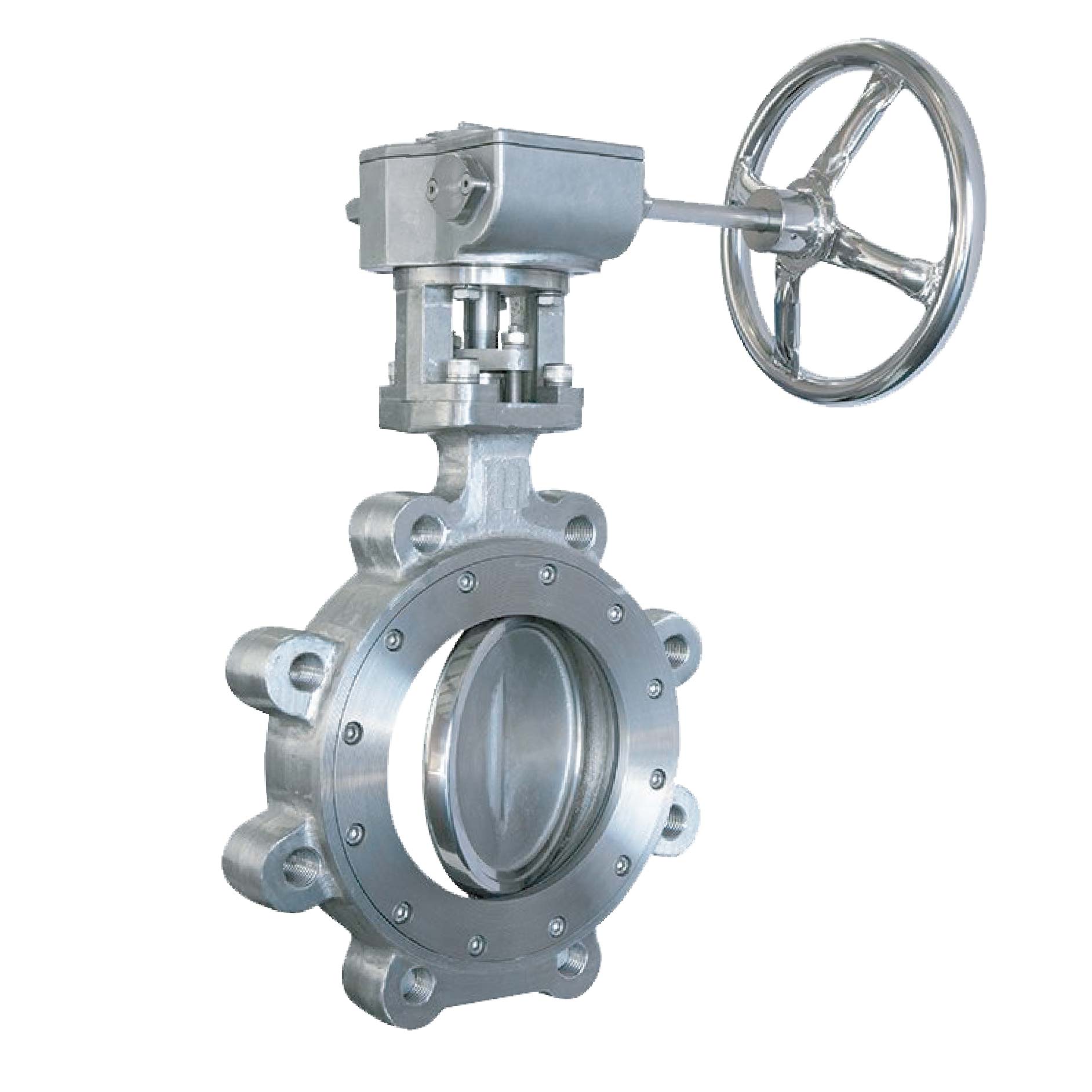

Double Offset Butterfly Valve
SPECIFICATIONS
| Design Standard | : | API 609 |
| Size Range | : | 2” – 60” |
| Pressure Rating | : | Class 150 – 600 |
| Working Temperature | : | -46˚C ~ +220˚C -50˚F ~ +428˚F |
| End Connection | : | ASME B16.5 / ASME B16.47 |
| Face-to-Face | : | API 609 / ASME B16.10 |
| Test & Inspection | : | API 598 |
