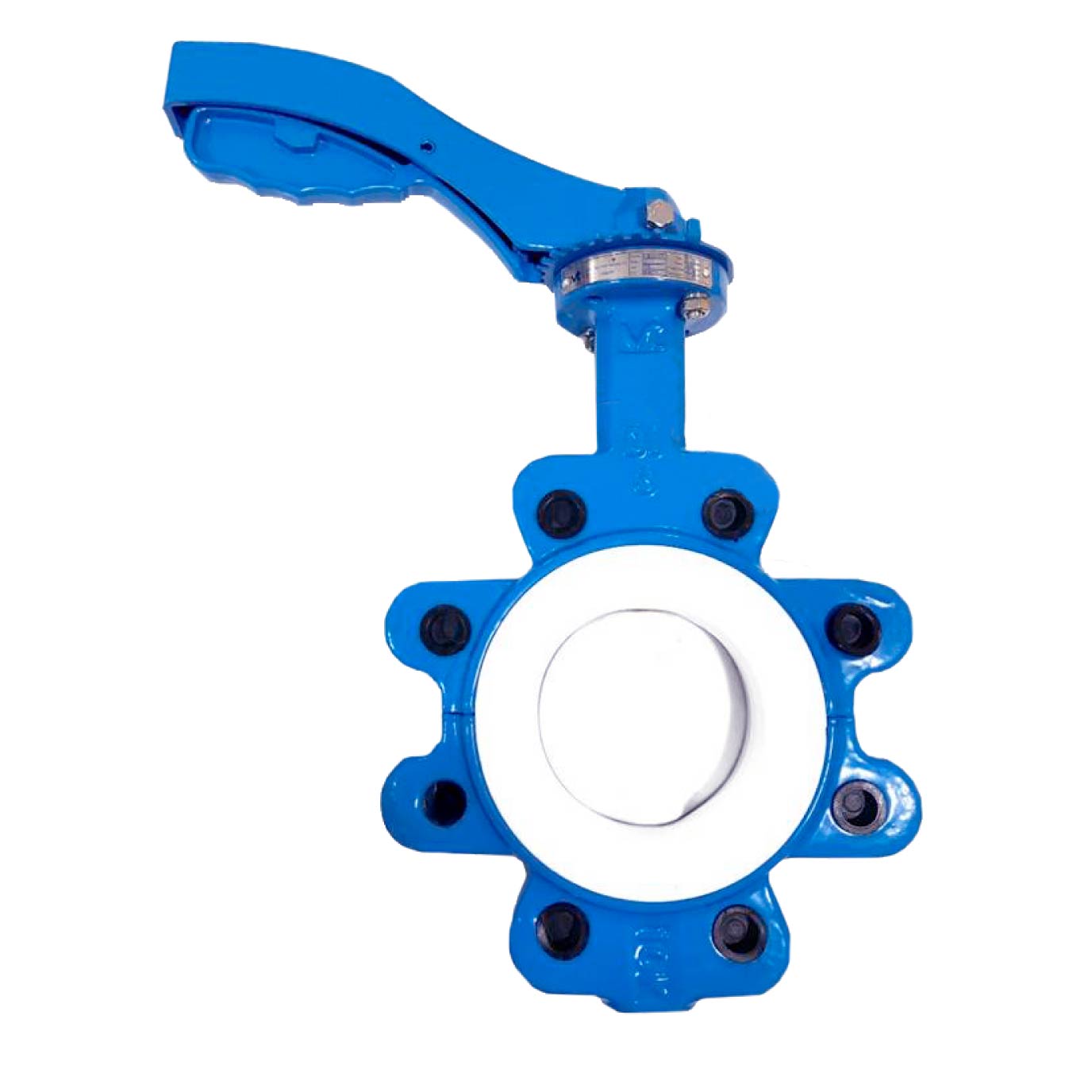

PTFE Lined Butterfly Valve
SPECIFICATIONS
| Design Standard | : | API 609 |
| Size Range | : | 2" - 24" |
| Pressure Rating | : | 200 psi |
| Working Temperature | : | -29˚C ~ +200˚C -20˚F ~ +392˚F |
| End Connection | : | ASME B16.5 / EN 1092-2 / JIS B2220 10K / AS 2129 |
| Face-to-Face | : | API 609 |
